Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels

Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels

Products - FCU Fan Coil Unit
  • Highlight

    FCU Fan Coil Unit

    ,

    Hotels FCU Fan Coil Unit

    ,

    Concealed fcu unit

  • NAME
    FAN COIL UNIT
  • Cooling Capacity
    3.6
  • Heating Capacity
    5.4
  • Airflow
    680
  • Condition
    New
  • Operating Voltage
    230VAC,220V
  • Mounting
    Ceiling Mount
  • Place of Origin
    CHINA
  • Brand Name
    XUGUANG
  • Model Number
    FP-68WA
  • Minimum Order Quantity
    1
  • Payment Terms
    T/T

Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels

  • Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels
  • Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels
  • Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels
  • Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels
Get Price Contact Now

Product Application

Fan coil units are mainly composed of centrifugal fans and coil heat exchangers.It is the terminal device of the central air conditioning system.It is widely used in hotels, restaurants, factories, hospitals, exhibition galleries, shopping malls and moving buildings.It is used to meet the requirements of cooling, dehumidification, heating , creating a fresh and tranquil working and living environment.

Model and performance

FP-34
FP-51
FP-68
FP-85
FP-102
FP-136
FP-170
FP-204
Rated air flow
m³/h
high
340
510
680
850
1020
1360
1700
2040
Medium
260
390
510
640
770
1020
1280
1530
low
170
260
340
430
510
680
850
1020
Rated cooling capacity
Kcal/h
H
1.98
2.8
3.87
4.58
5.42
7.38
9.08
11.1
H
1702
2408
3328
3938
4661
6346
7808
9546
Rated heat
Kcal/h
H
3.39
4.5
6.35
7.45
9.22
12.4
16.3
19.5
H
2915
3870
5460
6407
7930
10665
14020
16770
The input power
W
12Pa
37
52
62
76
96
134
152
189
30Pa
44
59
72
87
108
156
174
212
50Pa
49
66
84
100
118
174
210
250
The amount of water
Kg/h
350
510
660
800
980
1280
1600
1920
Flow resistance
Kpa
30
30
30
30
40
40
40
40
Motor number
1
2
3
4
power
220V/50HZ



Main Features

1) Simple structure and convenient installation

2) Adopting advanced world famous brand components

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

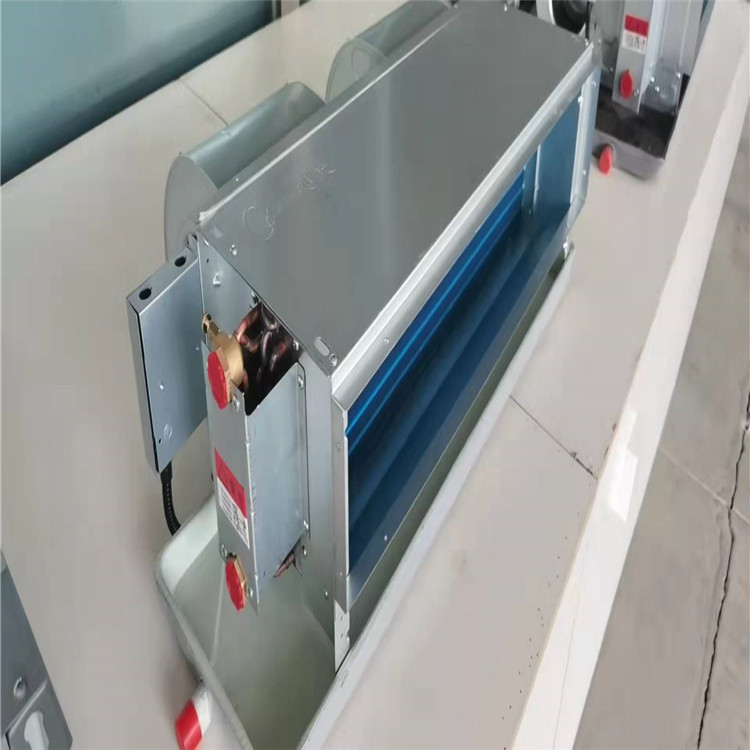

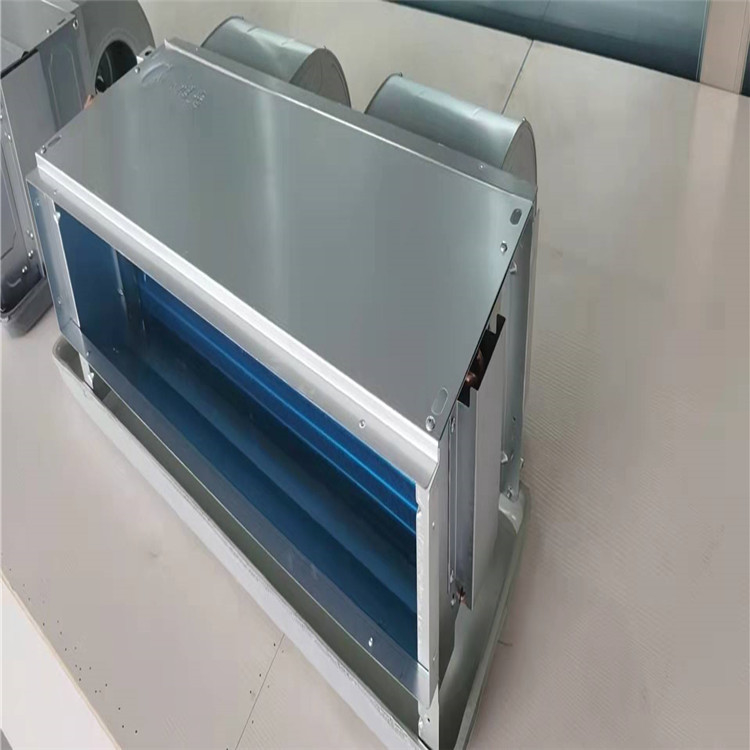

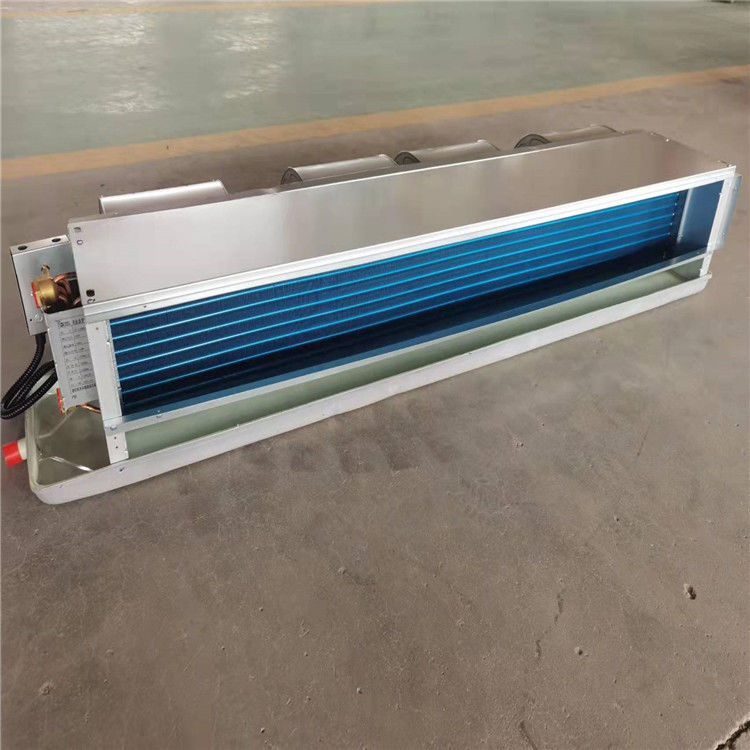

Detailed Images
Features of fan coil unit
More security, more reliable, and more service life
Each fan-coil heat exchanger will be undergone pressure leak detection.
The inlet and outlet are of forged brass structure, which is reliable and durable.
All materials are well fireproof. The motors are with overheating and power failure protection devices.
With free- maintenance Ultra-low noise rolling bearings, the service life can reach up to 35,000 hours. The shaft of the motor is specially treated without rust.
The casing is made of high-quality cold-rolled steel plate, sprayed plastic or hot-dip galvanized steel plate, which is mechanically bitten into the shape, which is strong and anti-corrosive.

High performance, high efficiency
The coil are equipped with seamless red copper tube string with high-efficiency corrugated aluminum fin structure, which is integrated by mechanical expansion. The combination is tight enough to make sure a higher heat transfer efficiency , a more sufficient heating efficiency , and a dust free surface .
Advanced technology with lower noise
The fan impeller has no welding points as a whole, and the wheel frame ring is tightly integrated and never deformed. The double-inlet forward-leaning airfoil centrifugal galvanized steel wind wheel has undergone strict dynamic and static balance tests. The air is transmitted in a streamlined manner to reduce vortexes. The generation of swirling air reduces the noise generated during air friction, and the unit runs more smoothly and quietly.
Beautiful appearance, easy maintenance
The unit is with humanized design for easily maintain and repair. The unit filter can also be cleaned at any time.

 Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels 0

Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels 1
